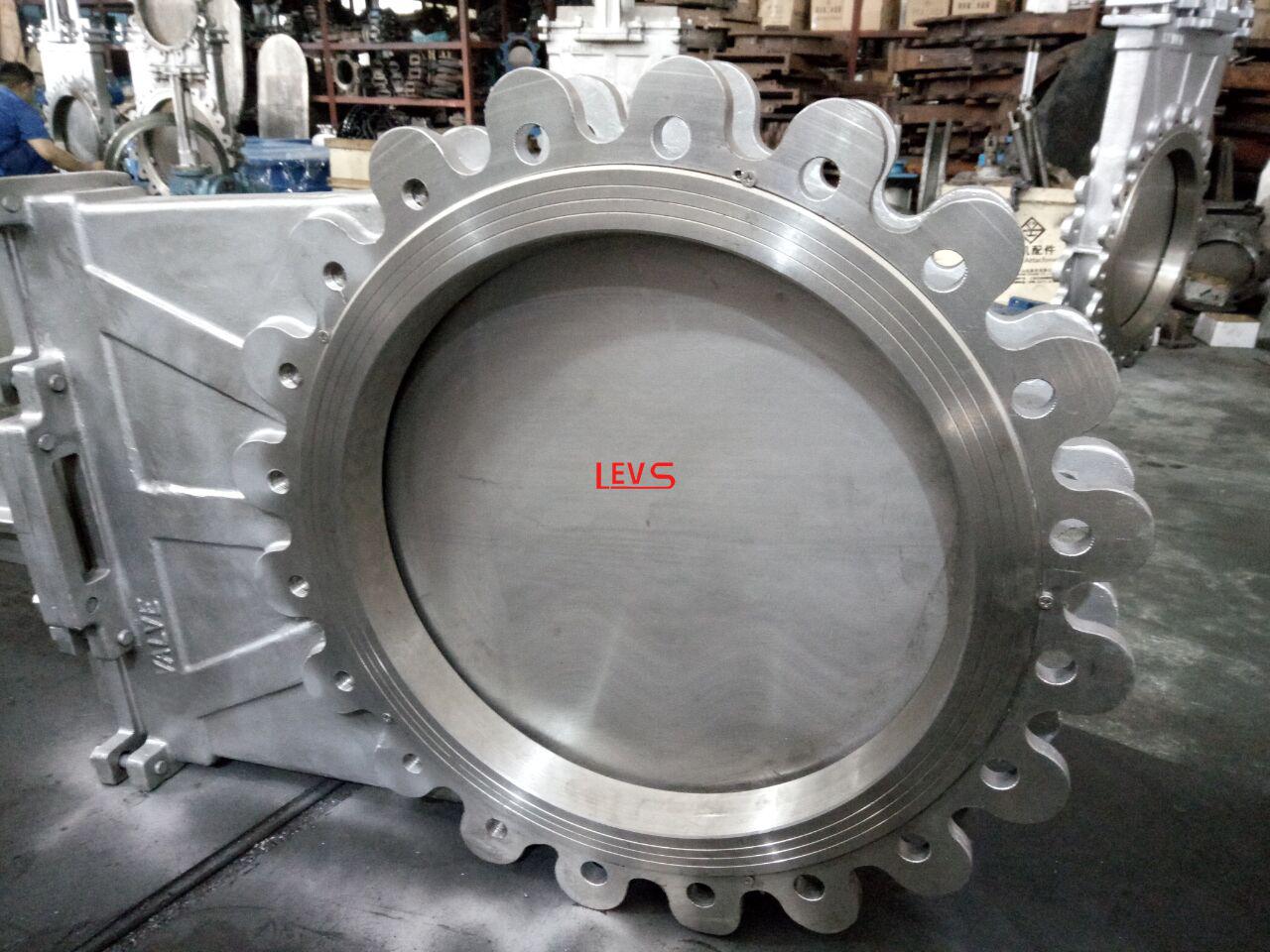

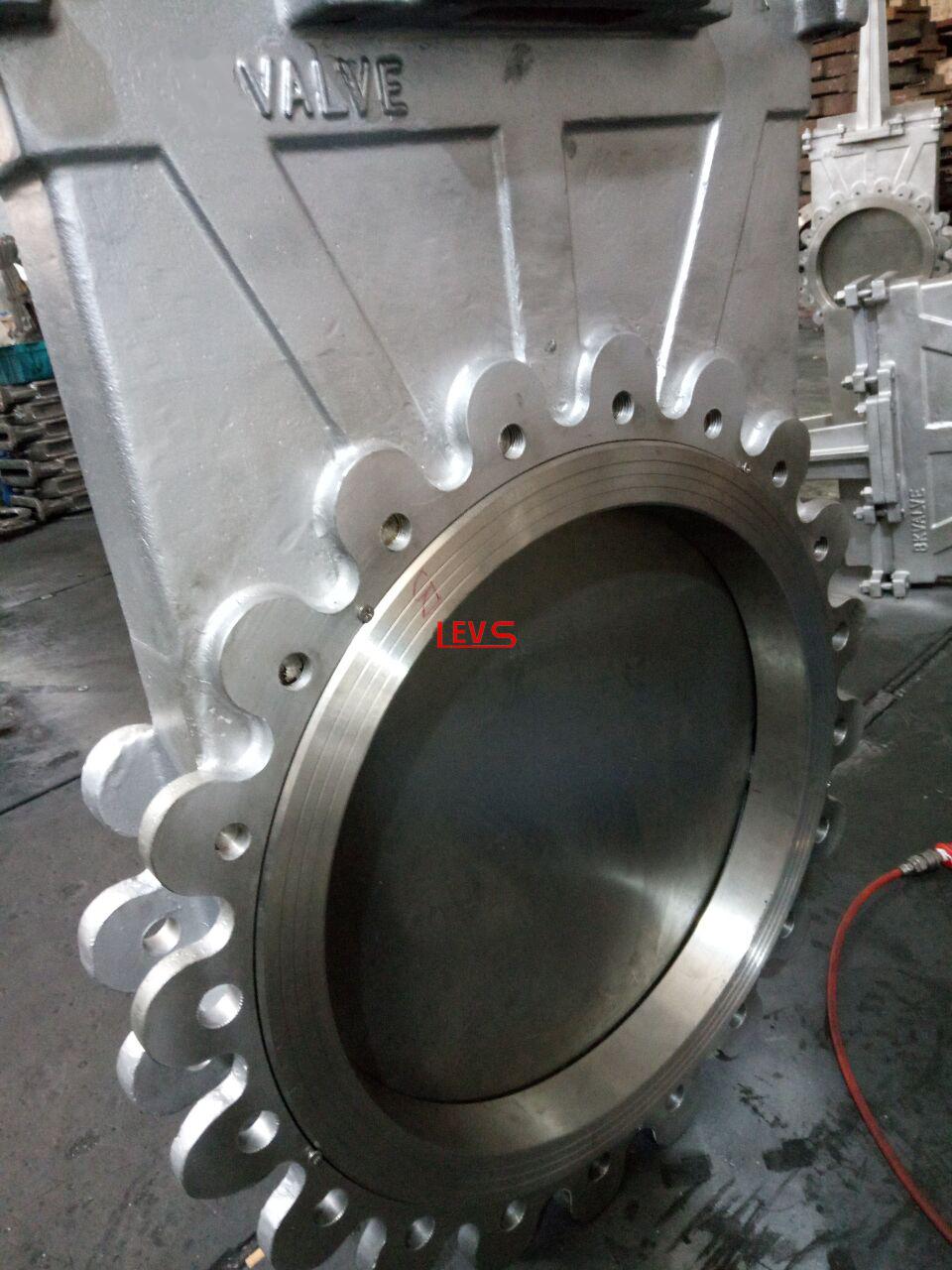

DEFLECTOR CONE KGV
Deflector Cone KGV
- MODEL: DLPZ73
- PRESSURE: PN10/PN16/JIS10K/ANSI 150
- MATERIAL: WCB,LCB,CF8,CF3,CF8M,CF3M, DUPLEX STAINLESS STEEL ETC.
- HANDLE WHEEL, CYLINDER, GEAR, ELECTRICAL, CHAIN WHEEL, ETC.

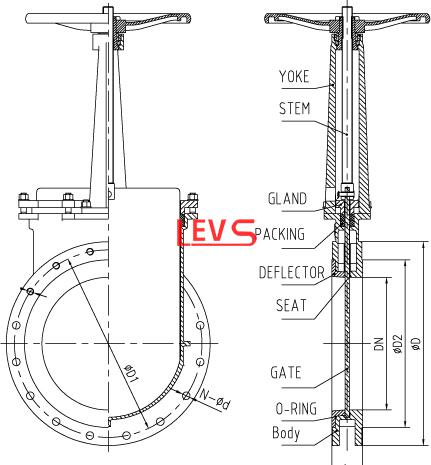

- Product description: WAFER KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1 SIZE RANGE: DN50-DN600
MAX.WORKING PRESSURE:
DN50-DN300: 10 BAR
DN350-DN450: 6 BAR
DN500-DN600: 4 BAR
BODY: WCB/LCB/CF8/CF8M ETC.
GATE: SS201/SS304/SS316/DUPLEX STEEL
STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL
SEAT: EPDM/NBR/PTFE/VITON/METAL
RISING STEM OR NO-RISING STEM
