SLURRY KGV
Slurry knife gate
- MODEL: KAZ73 &KDZ73X
- PRESSURE: PN10/PN16/JIS10K/ANSI 150
- MATERIAL: GGG40,GGG50 etc
- HANDLE WHEEL, CYLINDER, GEAR, ELECTRICAL, CHAIN WHEEL, ETC.
- Product description: SLURRY KNIFE GATE VALVE, BI-DIRECTIONAL ,DESIGN & MANUFACTURE: MSS SP 81, JB/T8691, FACE TO FACE: MSS SP 81,EN588-1, SIZE RANGE: DN50-DN600
MAX.WORKING PRESSURE:
DN50-DN250: 10 BAR
DN300-DN450: 6 BAR
DN500-DN600: 4 BAR
BODY: GGG40/GGG50 etc..
GATE: SS201/SS304/SS316/DUPLEX STEEL
STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL
SEAT: EPDM/NBR/NR

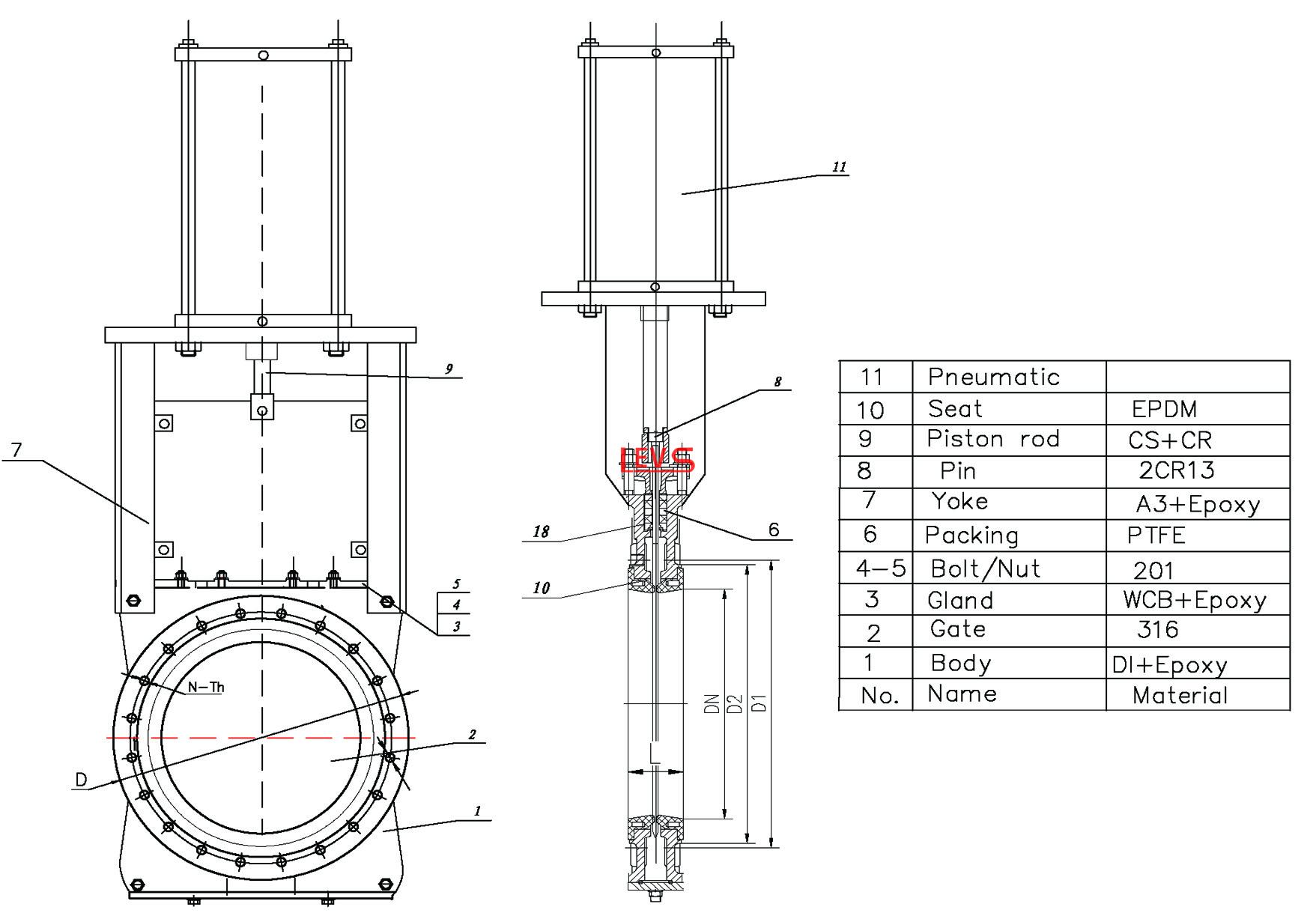

MODEL 1-KAZ73X
MODEL 2 ( KDZ73X )
