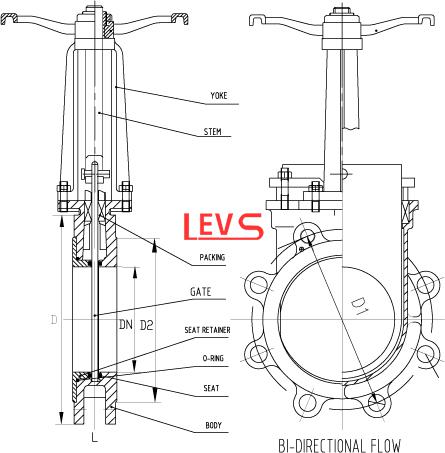

BI-DIRECTION KGV
Bi-Directional KGV
- MODEL: BPZ43,BPZ73
- PRESSURE: PN10/PN16/JIS10K/ANSI 150
- MATERIAL: WCB,GGG40,CF8,CF3,CF8M,CF3M, DUPLEX STAINLESS STEEL ETC.
- HANDLE WHEEL, CYLINDER, GEAR, ELECTRICAL, CHAIN WHEEL, ETC.
- Product description: KNIFE GATE VALVE, BI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1 SIZE RANGE: DN50-DN1200
MAX.WORKING PRESSURE:
DN50-DN300: 10 BAR
DN350-DN450: 6 BAR
DN500-DN600: 4 BAR
DN700-DN1200: 2 BAR
BODY: WCB/LCB/CF8/CF8M /GGG40/GGG50 ETC.
GATE: SS201/SS304/SS316/DUPLEX STEEL
STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL
SEAT: EPDM/NBR/PTFE/VITON/METAL
RISING STEM OR NO-RISING STEM
PATTERN SERIES A
PATTERN SERIES B
PREVIOUS：Square KGV
NEXT：Deflector Cone KGV
