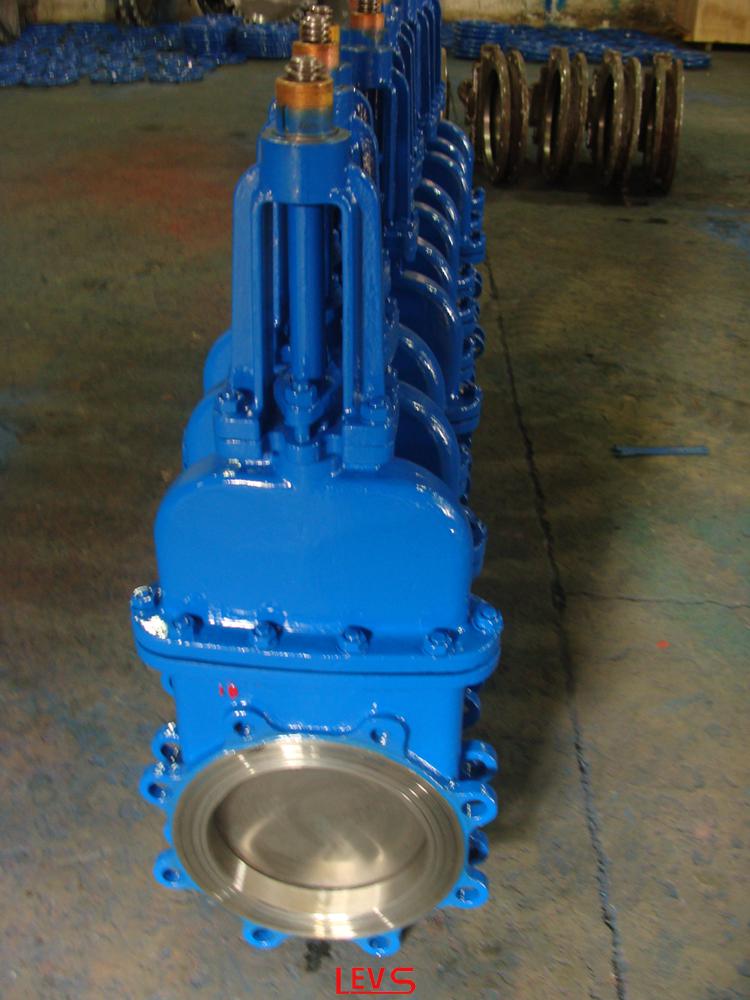

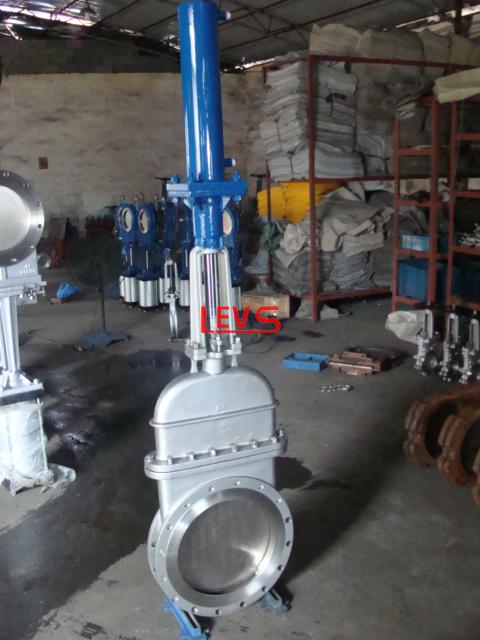

BOLTED BONNET KGV
Bonnected Knife gate
- MODEL: PFZ73
- PRESSURE: PN10/PN16/JIS10K/ANSI 150
- MATERIAL: WCB,LCB,CF8,CF3,CF8M,CF3M, DUPLEX STAINLESS STEEL ETC.
- HANDLE WHEEL, CYLINDER, GEAR, ELECTRICAL, CHAIN WHEEL, ETC.
- Product description: BOLTED BONNET KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1 SIZE RANGE: DN50-DN2000
MAX.WORKING PRESSURE:
DN50-DN300: 10 BAR
DN350-DN450: 6 BAR
DN500-DN600: 4 BAR
DN700-DN1200: 3 BAR
DN1400-DN2000 2 BAR
BODY: WCB/LCB/CF8/CF8M ETC.
GATE: SS201/SS304/SS316/DUPLEX STEEL
STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL
SEAT: EPDM/NBR/PTFE/VITON/METAL
PREVIOUS：Through conduit KGV
NEXT：Square KGV
