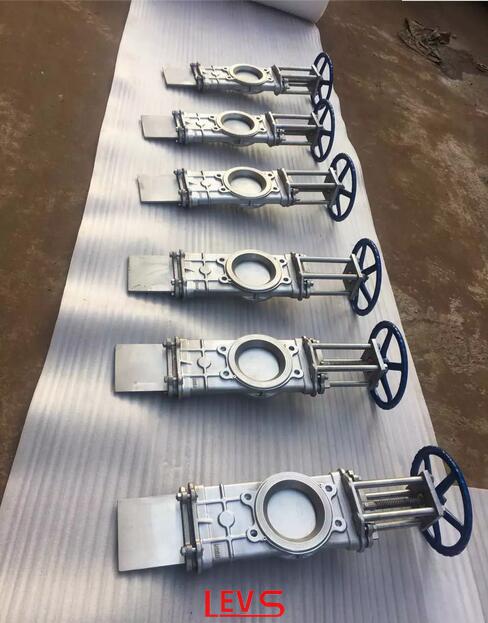

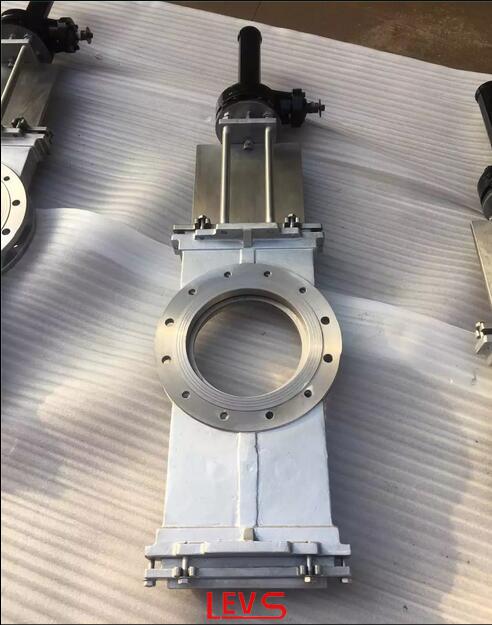

THROUGH CONDUIT KGV
Through conduit KGV
- MODEL: SCZ73
- PRESSURE: PN10/PN16/JIS10K/ANSI 150
- MEDIA: WATER, SLURRIES, PULP & PAPER, MOLASSES, CINDER,ASH ,COAL ETC.
- HANDLE WHEEL, CYLINDER, GEAR, ELECTRICAL, CHAIN WHEEL, ETC.
- Product description: THROUGH CONDUIT KNIFE GATE VALVE, UNI-DIRECTIONAL DESIGN & MANUFACTURE: MSS SP 81, JB/T8691 FACE TO FACE: MSS SP 81,EN588-1 SIZE RANGE: DN50-DN600
MAX.WORKING PRESSURE:
DN50-DN250: 10 BAR
DN300-DN450: 6 BAR
DN500-DN600: 4 BAR
BODY: WCB/LCB/CF8/CF8M ETC.
GATE: SS201/SS304/SS316/DUPLEX STEEL
STEM: SS201/SS304/SS316/SS420/DUPLEX STEEL
SEAT: EPDM/NBR/PTFE/VITON/METAL
