HIGH PERFORMANCE TYPE

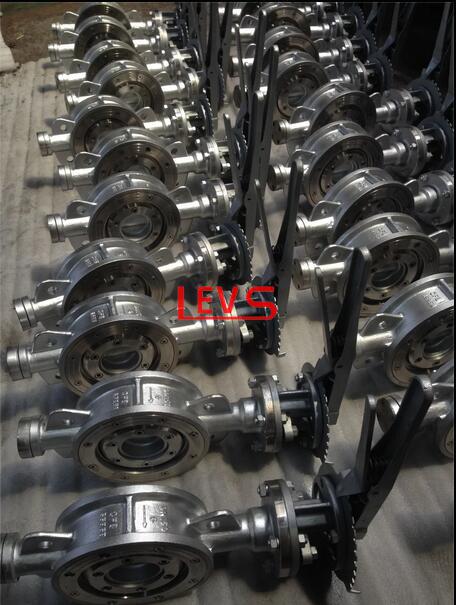

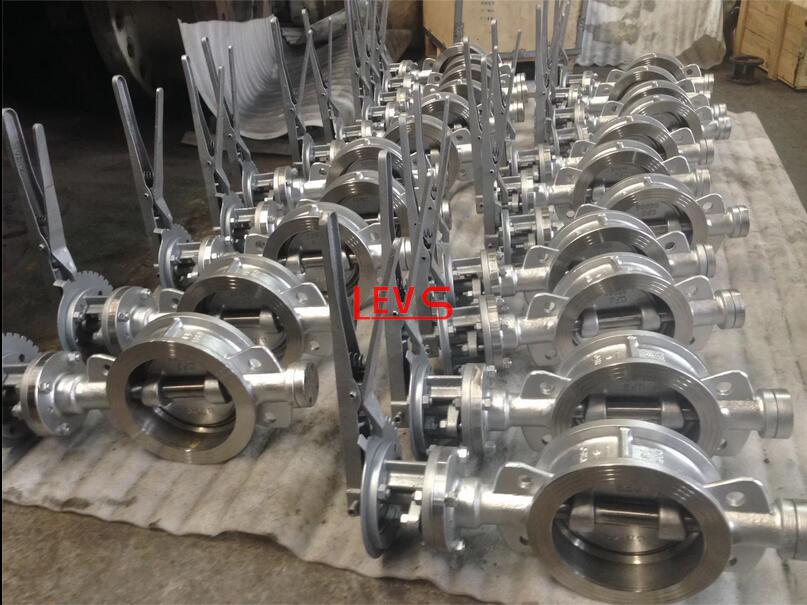

High performance BFV
- Model: HD373X/F
- PN6-PN64, ANSI 150-ANSI 600
- Material: WCB, LCB,GGG40, GG25,WC9,A105, F304,F316,CF8,CF8M, 4A, Duplex steel etc.
- Seat: METAL, NBR ,EPDM, VITON Etc.
- Product description: TRIPPLE ECCENTRIC BUTTERFLY VALVE, DEISGN FEATURE: DIN3354, API609 etc. FACE TO FACE: ANIS 16.10, DIN3202, EN588-1 INSPECTION & TEST: API 598, DIN 3230
HIGH PERFORMANCE BUTTERFLY VALVE :
1. BI-DIRECTION OR UNI-DIRECTION
2. REPLACEABLE SEAT

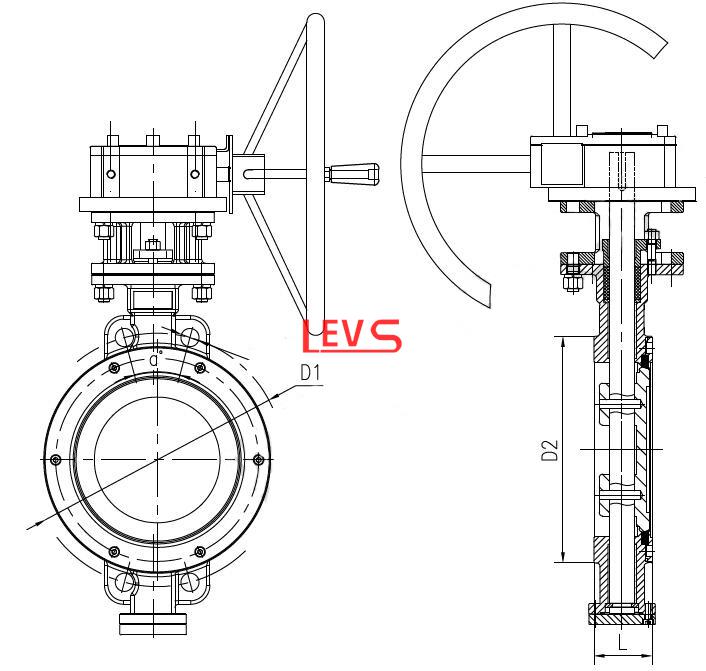

MATERIAL TABLE LIST
1. Bolt: Carbon steel or stainless steel;
2. end cap: Carbon steel or stainless steel
3. Gasket: PTFE;
4. Trust ring: Carbon steel or stainless steel
5. Stem: F6a, 420, 304, 316, 17-4PH;
6. Pin: F6a, 420, 304, 316
7. Disc: Carbon steel or stainless steel;
8. Sealing ring: SS304/316, PTFE
9. Retaining ring: Carbon steel or stainless steel;
10. O-RING: VITON,NBR
11. Body: Carbon steel or stainless steel;
12. Packing ring: SS304
13. Packing: PTFE, Graphite;
14. yoke & gland: Carbon steel or stainless steel
